flat head knurled body
High strength: suitable for thin materials (thickness above 0.5mm), capable of withstanding high tensile and shear forces.
Convenient installation: quick riveting, reducing assembly time, suitable for automated production lines.
Universality: Compatible with various bolt standards (such as metric or imperial threads).
- Overview
- Recommended Products
Product Overview

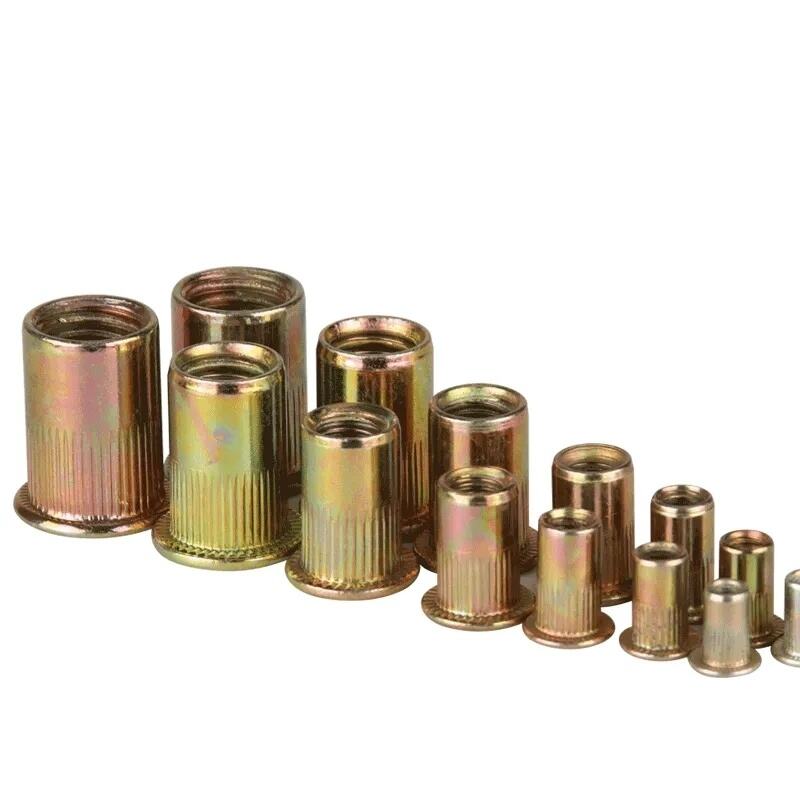

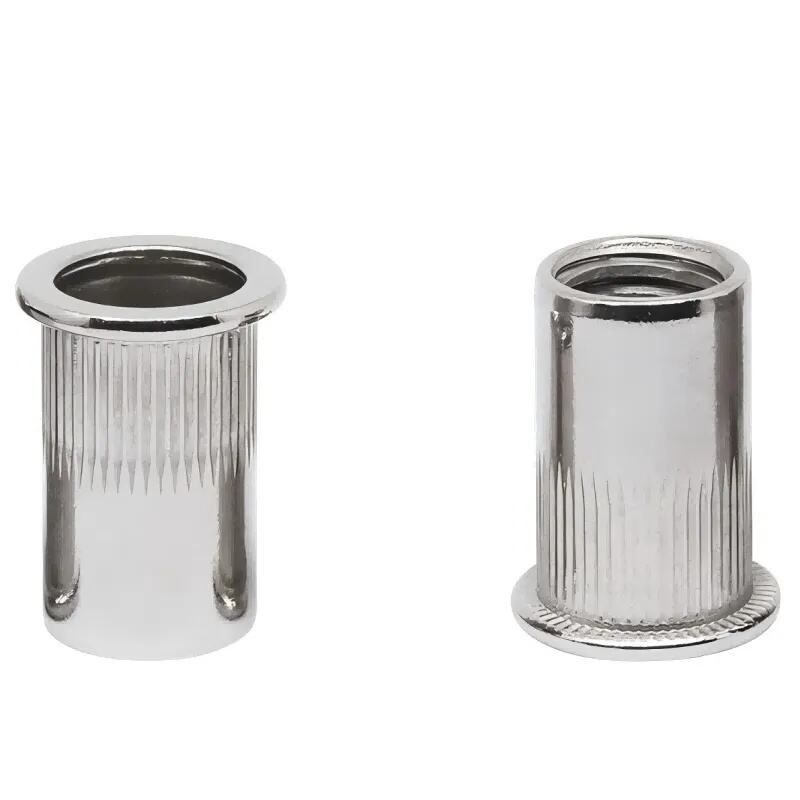

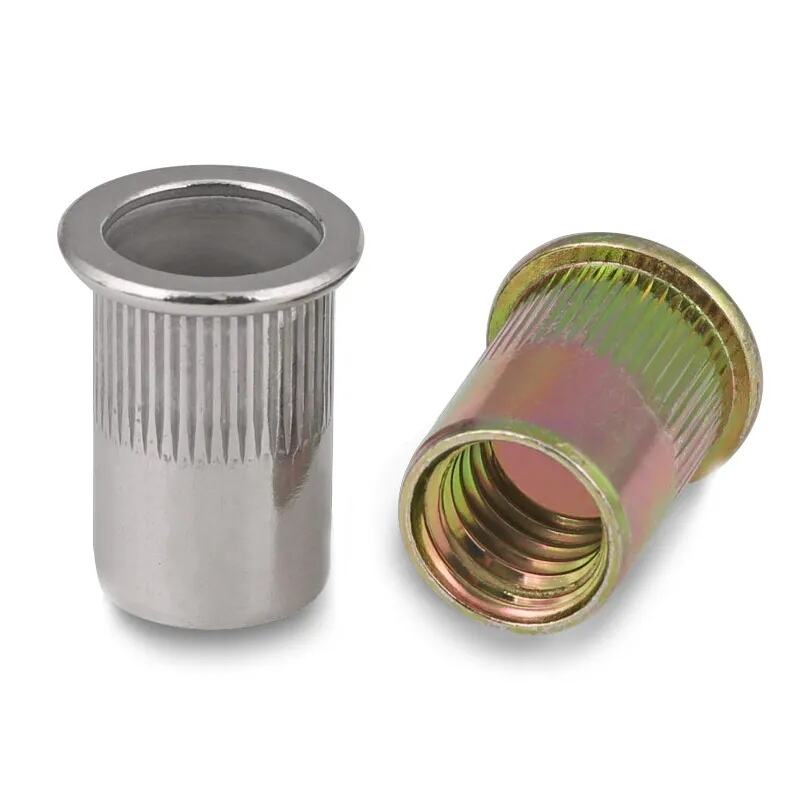

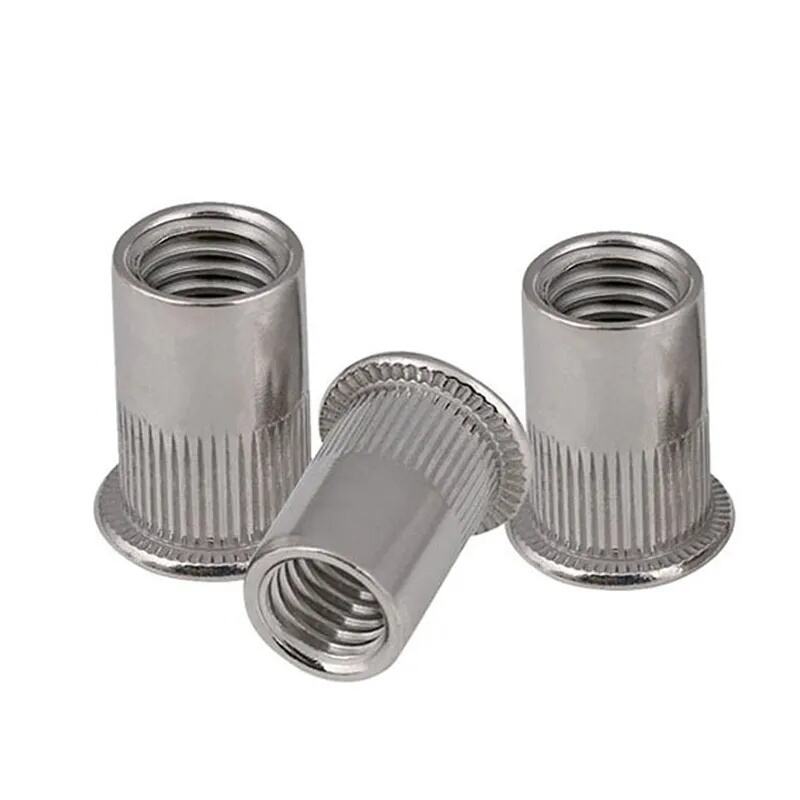

Welcome to our rivet nut product homepage. Our rivet nuts are precision designed to create high-strength threaded connections in thin-walled materials, including sheet metal, plastic, and composite materials, while ensuring excellent quality. Whether you are in the construction industry or a distribution partner, our rivet nuts can be customized with reliable and optimal solutions according to your needs.
Specifications and Parameters
| Material | Carbon steel (such as 4.8 grade, 8.8 grade), stainless steel (such as A2-70), brass or titanium alloy, surface can be galvanized, nickel or Dacromet treated |
| Strength grade | Carbon steel: 4.8 grade (tensile strength 400MPa), 8.8 grade (800MPa); Stainless steel: A2-70 (tensile strength 700MPa) |
| Head shape | Flat head (countersunk design, flush with the surface), with cross groove or hexagonal drive |
| Torque requirement | Depending on the material and size differences, the installation torque range is usually 0.5N · m to 20N · m (specific standards such as ISO 898-1 need to be referred to). |
| Mechanical properties - Tensile strength | The stainless steel material has a strength of about 500-700 MPa, and the galvanized carbon steel can reach over 800 MPa. |
| Surface treatment | Galvanizing (rust prevention), anodizing (aluminum alloy), passivation (stainless steel), etc. |
| Size - Diameter (D) | Common range: M2~M12 (metric) or 1/8 "~1/2" (imperial). |
| Size - Length (L) | Refers to the length of the threaded part, such as 5mm~50mm (customized according to the purpose). |
| Size - Head diameter (H) | Usually 1.5~2 times the diameter of the thread (such as M4 rivet head diameter of about 6~8mm). |
Mechanical properties
Tensile strength:
The stainless steel material has a strength of about 500-700 MPa, and the galvanized carbon steel can reach over 800 MPa.
Surface treatment:
Galvanizing (rust prevention), anodizing (aluminum alloy), passivation (stainless steel), etc.
Size:
Diameter (D):
Common range: M2~M12 (metric) or 1/8 "~1/2" (imperial).
Length (L):
Refers to the length of the threaded part, such as 5mm~50mm (customized according to the purpose).
Head diameter (H):
Usually 1.5~2 times the diameter of the thread (such as M4 rivet head diameter of about 6~8mm).
Product features
Design Structure:
Flat head design: The head is flat and the surface is smooth after installation, suitable for scenes that require aesthetics or reduced protrusions.
Internal thread: It has standard threads (such as M4, M6, etc.) inside, allowing bolts or screws to be easily screwed in, providing a reliable connection.
Installation method: Use riveting tools to press into pre drilled holes and achieve permanent fixation through material deformation, without the need for welding or nut backplates.
Material and specifications:
Common materials: stainless steel, carbon steel, or aluminum alloy, providing anti-corrosion and corrosion resistance properties.
Typical dimensions: The diameter range is usually M3 to M12, and the length can be customized according to application requirements.
Advantages:
High strength: suitable for thin materials (thickness above 0.5mm), capable of withstanding high tensile and shear forces.
Convenient installation: quick riveting, reducing assembly time, suitable for automated production lines.
Universality: Compatible with various bolt standards (such as metric or imperial threads).
Application scenarios
Automotive industry: used for fastening body panels, engine components, or interior to ensure safe connections of lightweight structures.
Electronic devices: Provide reliable grounding or component fixation during chassis, heat sink, or PCB installation.
Furniture manufacturing: suitable for connecting metal frames or thin plates to enhance structural stability.
Other fields include aerospace, construction, and DIY projects that require efficient and durable threading solutions.
Frequently Asked Questions (FAQ):
Q1: Do you have a minimum order quantity?
Answer: Depending on different ideas, it can be negotiated. The more quantity there is, the more competitive the unit price will be.
Q2: What are your main products?
Answer: Our main products include rivets, bolts, nuts, screws, drywall nails, etc.
Q3: How is the after-sales service?
Answer:
1) We will always maintain the same quality as the buyer's samples, and if there are any quality issues, we will provide compensation to the customer.
2) We will suggest our packaging and be responsible for packaging, ensuring the safety of the goods during delivery.
3) We will track the entire process of goods from production to sales, and solve sales problems for customers.
Q4: Do you produce non-standard parts?
Answer: We can produce non-standard products. Please send us the specifications and drawings of the products you need, and we will provide you with a quotation.
Q5: Are you a trading company or a manufacturer?
Answer: We are a professional manufacturer with our own factory.
Q6: What is your delivery time?
Answer: Inventory products: 7-15 days. Customized products take 15-25 days.
